@Applications & Benefits

1. Applications

 2)Method

  - ASTM D2887, D3710, D5442, D6352, D7096, D7169, D7213, D7398, D7500

  - DIN 51435, DIN 51581

  - EN 15199

  - IP 406, IP 480, IP 507, IP 545

  - ISO 3924

 2)Analysis of

  - Alkane profile (Wax), Distillation residue, Initial Boiling Point (IBP), Final Boiling Point (FBP), True Boiling Point (TBP) distribution, Flash Point Correlation report, Motor Oil Volatility report, Noack Evaporation Loss report

 3)Application range

  - Crude oil, Diesel fuel, Distillates, Fuel oil, Gasoline, Lube oils, Jet fuel, Naphtha, Reformate/platformate, Thermal cracker feed, Vacuum gas oil, Wax

2. Benefits

 - High Quality GC Hardware

  : All SimDist Analyzers are based upon the Agilent GC configured with dedicated columns, inlets and detectors.

 - Complete Analyzer Range

  : The SimDist analyzers comply with all standard test methods of ASTM, DIN, EN, IP and ISO to provide a boiling point distribution up to 750 °C.

 - Dedicated SimDist Inlet

  : The Programmable Temperature Inlet developed by Da Vinci optimizes the peak shape and makes the column/liner connection easier.

 - Proven software platform

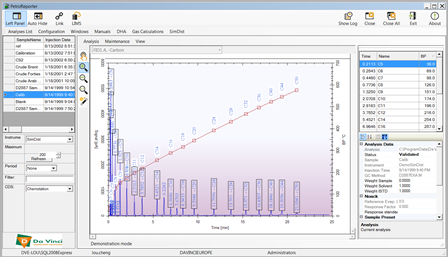

 : The analyzers include the PetroReporter software that automates the data processing and reporting of the properties of petroleum streams. PetroReporter is successfully used by a global installed base of leading oil refineries.

 - Accurate characterization of crude oils

  : To improve the boiling point characterization of crude oils the DVLS PetroReporter merges the High Temp SimDist with a capillary GC (DHA) analysis.

 - Application Guarantee

 : Each analyzer is tested according to the in-house testing procedures to check the system performance and to verify the analyzer specification by a reference sample test. Factory Acceptance Test will be scheduled upon request.

@Configuration & Options

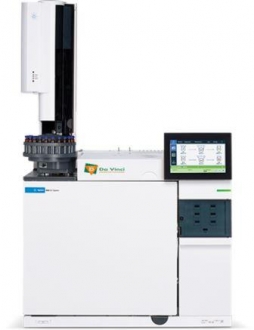

The SimDist analyzers are based upon the Agilent GC configured for a test method with the required hardware and software components(based on the Agilent 8890 GC)

- GC programmable temperature sample inlet (PTI)

- GC column

- Calibration, reference or QC samples

- PetroReporter software.

Improved SimDist analysis with Dedicated inlet

The DVLS Programmable Temperature Inlet is a dedicated SimDist inlet that:

- Allows direct injection

- Provides stable blank runs

- Minimizes carry over

- Has no dead volume

- Avoids discrimination of heavy components
